Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan

  • High Light

    air cooling unit

    ,

    evaporative cooler unit

  • Condition
    New, New
  • Operating Voltage
    380/400 VAC
  • Product Name
    Portable Evaporators
  • Function
    Air Conditioner Terminal Unit
  • Application
    Commercial
  • Keywords
    Evaporative Cooler
  • Voltage
    220V/380V
  • Power Source
    Electric Power
  • Case Material
    Power Steel
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Port
    Shanghai For Portable Evaporators
  • Place of Origin
    Shandong, China (Mainland)
  • Brand Name
    HUGECOOL
  • Certification
    Other, CE
  • Minimum Order Quantity
    1 Unit/Units
  • Price
    $200.00 - $1,400.00 / Units
  • Packaging Details
    Double-sided wind blowing portable evaporators cooling fan by plywood box with pallet package
  • Supply Ability
    300 Set/Sets per Month portable evaporators

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan





Double-sided wind blowing portable evaporators cooling fan

Features of cold room air cooler

· The fan noise is low;

· 100% Heat transfer area , fully reliable;

· With defrost protection, high safety factor;

· The fans can be removable, easy maintenance;

· Internal thread copper tube, high heat transfer efficiency;

· Galvanized sheet spray process, good corrosion resistance;

· Water tray, outlet uses copper pipe interface, long lifespan;

· Galvanized sheet spray process, good corrosion resistance;

· Liquid-filled liquid supply, fully evaporation, high evaporation efficiency;

· Hydrophilic aluminum foil, high heat transfer efficiency, good defrost effect.

The description of air evaporator

Model Ref. capacity
(kw)
Cooling area
(m²)
Space of fins Fan Water Defrost
Qty Dia.(mm) Air volume(m3) Pessure(pa) Power
(nxW)
Voltage
(V)
Water volume Water inlet
(inch)
Water outlet
(inch)
DD-12.0/60 12.0 60     6 2 500 2x6000 147 2x550    380 1.5 G1 1/2 G2 1/2
DD-15.9/80 15.9 80 2 500 2x6000 167 2x550 2.0
DD-20.0/100 20.0 100 3 500 3x6000 167 3x550 2.4
DD-24.0/120 24.0 120 3 500 3x6000 167 3x550 2.8
DD-28.0/140 28.0 140 4 500 4x6000 167 4x550 3.2
DD-32.1/160 32.1 160 4 500 4x6000 167 4x550 3.7
DD-37.4/200 37.4 200 2 600 2x10000 200 2x1500 4.4 G2 G3
DD-46.8/250 46.8 250 3 600 3x10000 200 3x1500 5.8
DD-56.2/310 56.2 310 3 600 3x10000 200 3x1500 6.1

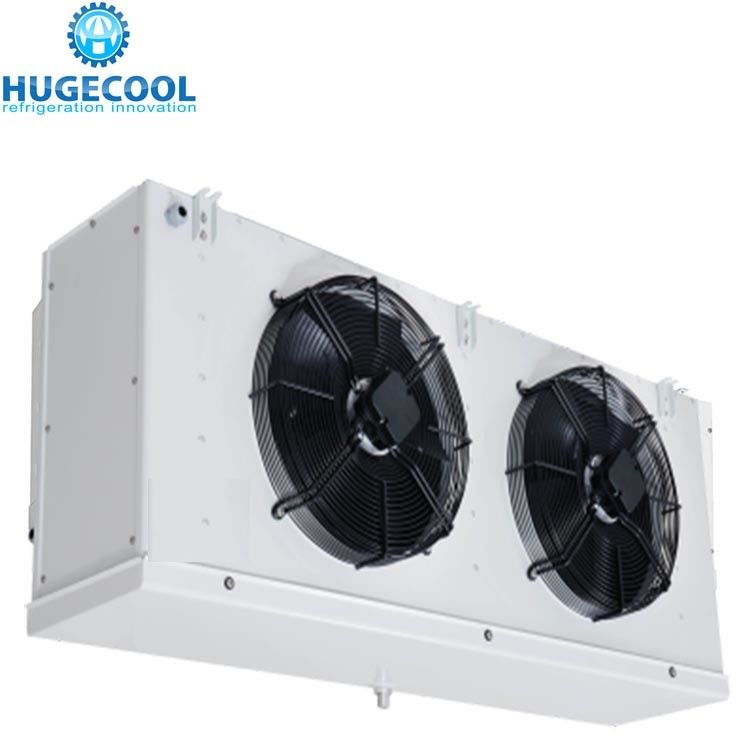

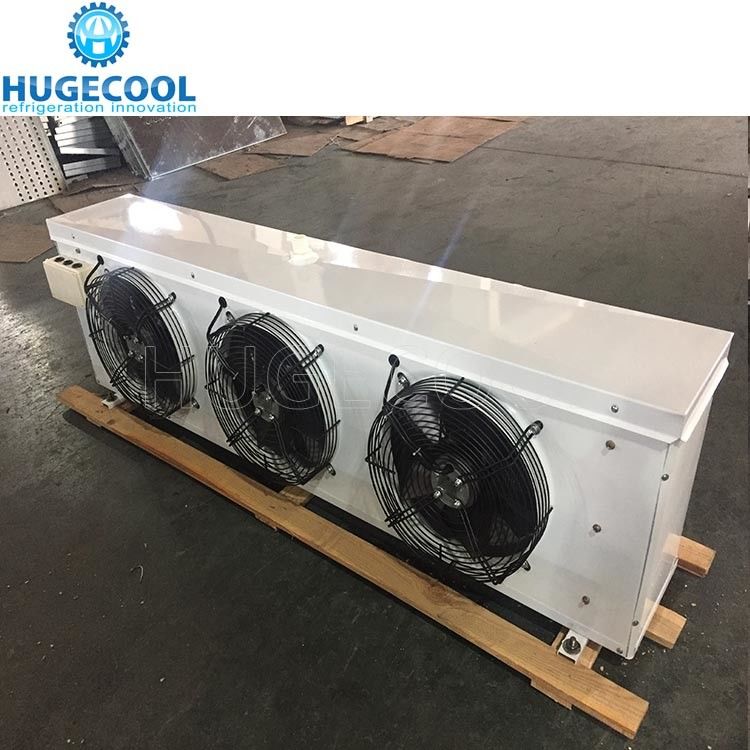

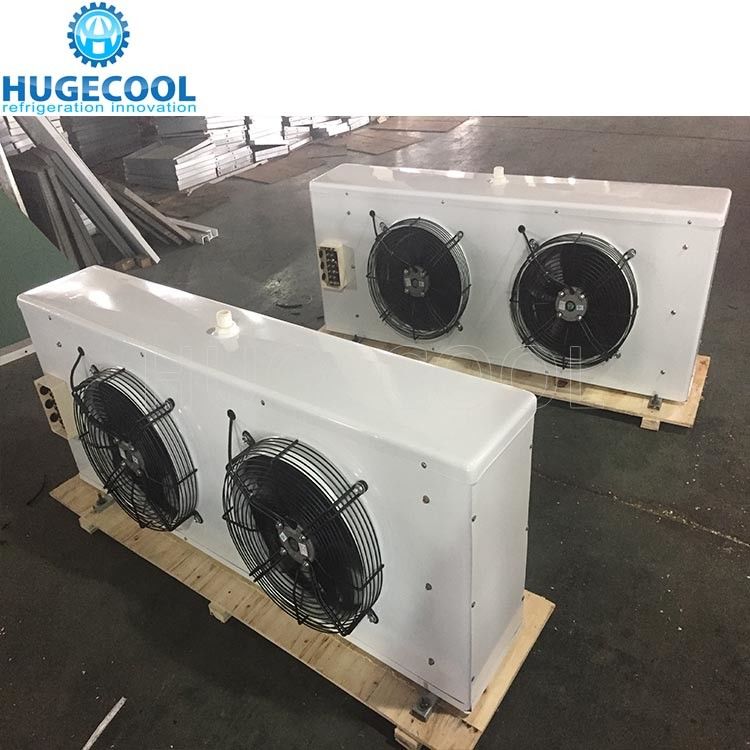

Pictures of air evarator

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 0

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 1

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 2

Feature

1. Made of steel plate, the surface coating, corrosion resistance.

2. With beatuiful appearance

3. With excellent heat exchange effect

4. Water frosting to ensure quick defrosting.

Application

1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.

2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.

3.DD apply to -18°C cold room, storage meat, fish.

4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish



Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 3

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 4

FAQ



1.What's your MOQ for this model?



Our MOQ is 1 set for this model



2.What's your delivery time?



20 to 30 working days after down-payment confirmation.



3. What's your payment term?



L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).

Double Sided Evaporator Cooling Fan , Portable Evaporative Cooling Fan 5
