Breeze rooftop evaporative air cooler
The description of air evaporator
Main Features
1) Simple structure in linear type, easy in installation and maintaining
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Model | Ref. capacity (kw) |
Cooling area (m²) |
Space of fins | Fan | Water Defrost | |||||||
Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) |
Voltage (V) |
Water volume | Water inlet (inch) |
Water outlet (inch) |
||||
DD-12.0/60 | 12.0 | 60 | 6 | 2 | 500 | 2x6000 | 147 | 2x550 | 380 | 1.5 | G1 1/2 | G2 1/2 |
DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 2.0 | ||||
DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.4 | ||||
DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.8 | ||||
DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.2 | ||||
DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.7 | ||||
DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2x10000 | 200 | 2x1500 | 4.4 | G2 | G3 | ||
DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3x10000 | 200 | 3x1500 | 5.8 | ||||
DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3x10000 | 200 | 3x1500 | 6.1 |

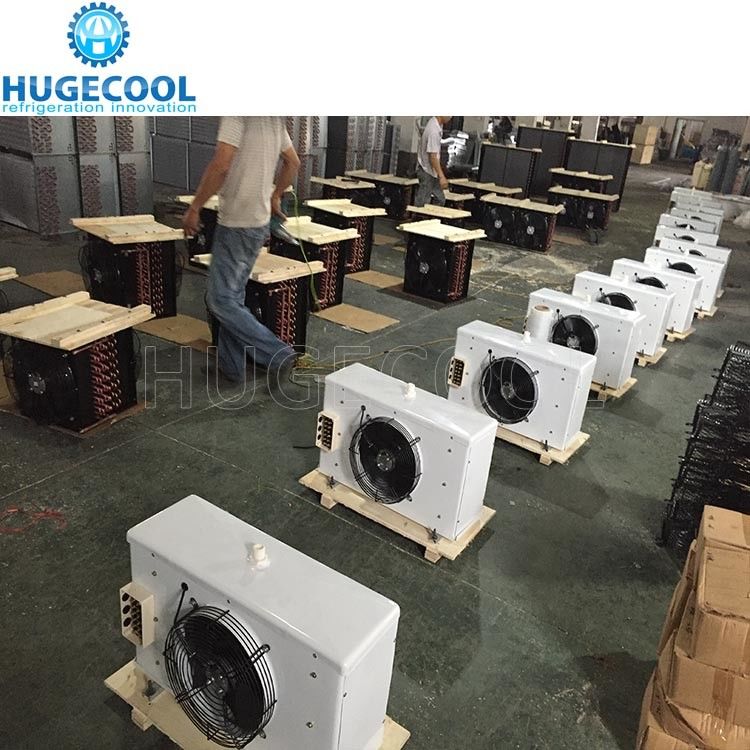

Pictures of air evarator
Feature
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beatuiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting.
Application
1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.
2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.
3.DD apply to -18°C cold room, storage meat, fish.
4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance by T/T before delivery ).
