Hot sale air charge cooler unit
The description of air evaporator
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beautiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting
Model | Ref. capacity (kw) |
Cooling area (m²) |
Space of fins | Fan | Water Defrost | |||||||
Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) |
Voltage (V) |
Water volume | Water inlet (inch) |
Water outlet (inch) |
||||
DD-12.0/60 | 12.0 | 60 | 6 | 2 | 500 | 2x6000 | 147 | 2x550 | 380 | 1.5 | G1 1/2 | G2 1/2 |
DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 2.0 | ||||
DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.4 | ||||
DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.8 | ||||
DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.2 | ||||
DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.7 | ||||
DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2x10000 | 200 | 2x1500 | 4.4 | G2 | G3 | ||
DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3x10000 | 200 | 3x1500 | 5.8 | ||||
DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3x10000 | 200 | 3x1500 | 6.1 |

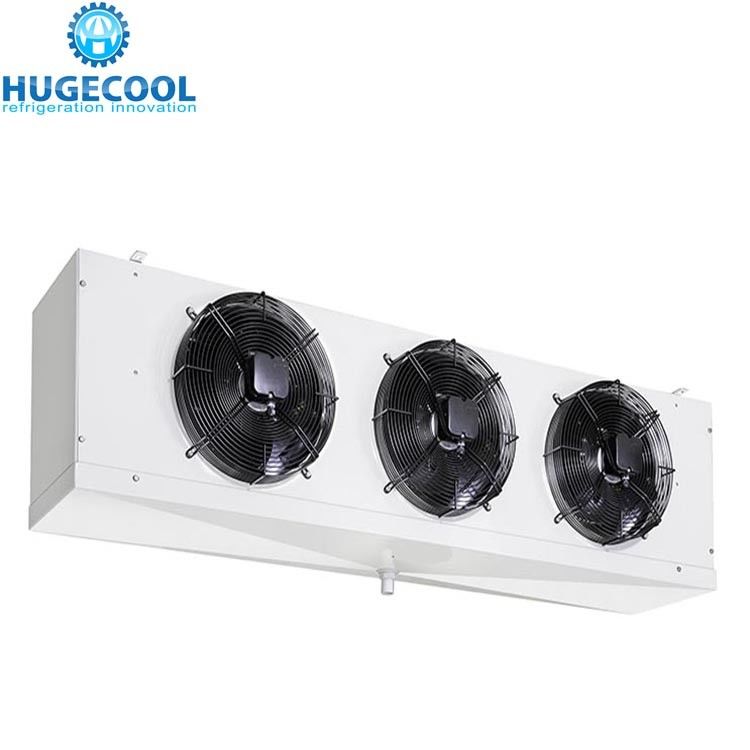

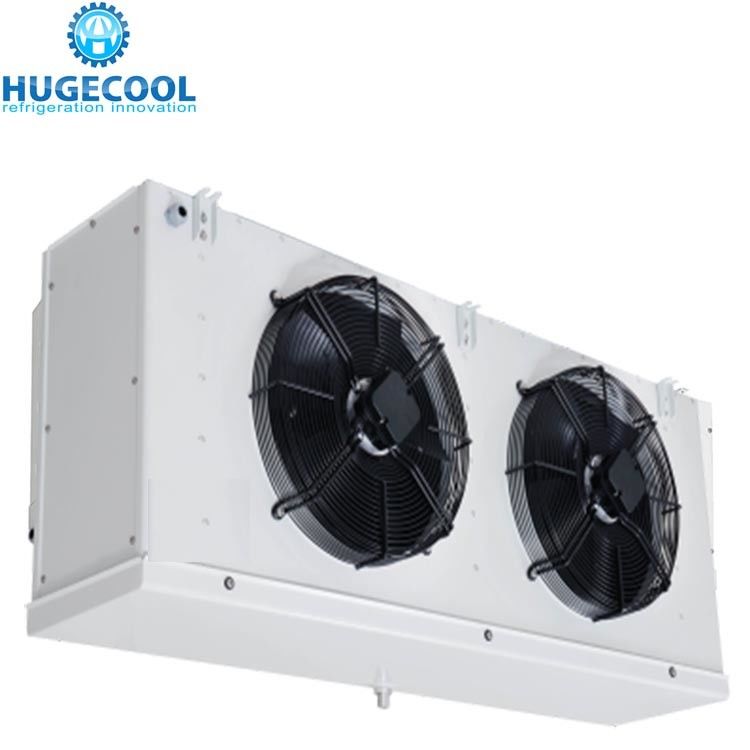

Pictures of air evarator
Feature
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beatuiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting.
Application
1. D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.
2. Dl serial can apply to 0°C cold room, storage such as egg or vegetable.
3. DD apply to -18°C cold room, storage meat, fish.
4. DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance payment by T/T before delivery).
