Product Details:
|
| Condition: | New, New | Operating Voltage: | 380/400 VAC |
|---|---|---|---|
| Product Name: | Portable Evaporators | Function: | Air Conditioner Terminal Unit |
| Application: | Commercial | Keywords: | Evaporative Cooler |
| Voltage: | 220V/380V | Power Source: | Electric Power |
| Case Material: | Power Steel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai For Portable Evaporators | ||
| High Light: | air cooling unit,evaporative cooler unit |
||
Double-sided wind blowing portable evaporators cooling fan
Features of cold room air cooler
· The fan noise is low;
· 100% Heat transfer area , fully reliable;
· With defrost protection, high safety factor;
· The fans can be removable, easy maintenance;
· Internal thread copper tube, high heat transfer efficiency;
· Galvanized sheet spray process, good corrosion resistance;
· Water tray, outlet uses copper pipe interface, long lifespan;
· Galvanized sheet spray process, good corrosion resistance;
· Liquid-filled liquid supply, fully evaporation, high evaporation efficiency;
· Hydrophilic aluminum foil, high heat transfer efficiency, good defrost effect.
The description of air evaporator
| Model | Ref. capacity (kw) |
Cooling area (m²) |
Space of fins | Fan | Water Defrost | |||||||
| Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) |
Voltage (V) |
Water volume | Water inlet (inch) |
Water outlet (inch) |
||||
| DD-12.0/60 | 12.0 | 60 | 6 | 2 | 500 | 2x6000 | 147 | 2x550 | 380 | 1.5 | G1 1/2 | G2 1/2 |
| DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 2.0 | ||||
| DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.4 | ||||
| DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.8 | ||||
| DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.2 | ||||
| DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4x6000 | 167 | 4x550 | 3.7 | ||||
| DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2x10000 | 200 | 2x1500 | 4.4 | G2 | G3 | ||
| DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3x10000 | 200 | 3x1500 | 5.8 | ||||
| DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3x10000 | 200 | 3x1500 | 6.1 | ||||

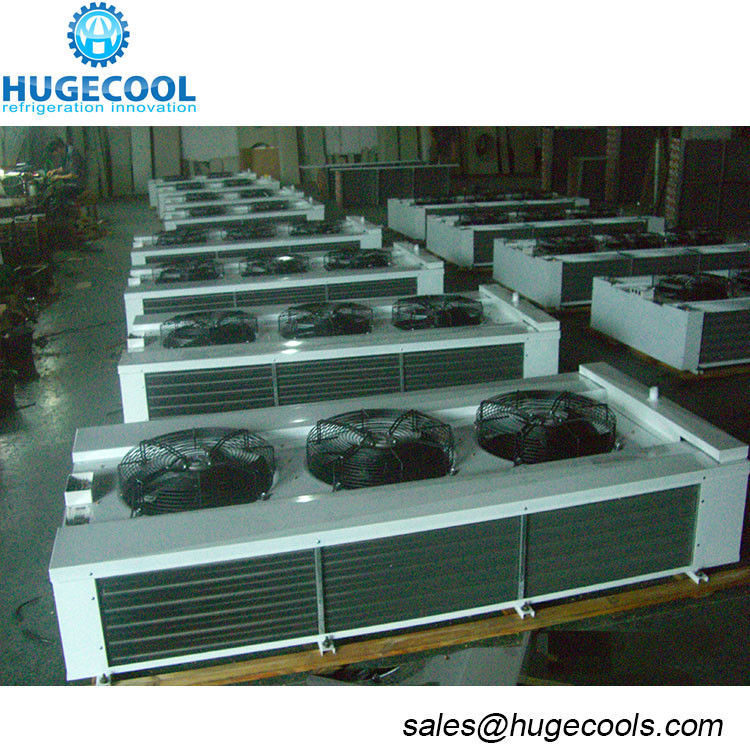

Pictures of air evarator
Feature
1. Made of steel plate, the surface coating, corrosion resistance.
2. With beatuiful appearance
3. With excellent heat exchange effect
4. Water frosting to ensure quick defrosting.
Application
1.D serial air cooler can match with different capacity condensing equipments; it can apply to different temperature cold rooms.
2.Dl serial can apply to 0°C cold room, storage such as egg or vegetable.
3.DD apply to -18°C cold room, storage meat, fish.
4.DJ apply to -25°C cold room for freezing or fast freezing the fresh meat and fish
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).
