Manual Sliding Electric Door For Cold Storage Room

Manual Sliding Electric Door For Cold Storage Room

  • High Light

    Cold Storage Room Electric Door

    ,

    220v Manual Sliding Electric Door

    ,

    Cold Room Sliding Electric Door

  • Applicable Industries
    Hotels, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
  • Condition
    New
  • Temperature
    -45~+20C
  • Voltage
    220v,380v,440v
  • Power
    Customized
  • Dimension(L*W*H)
    Customized
  • Weight
    200 KG
  • Warranty
    1 Year
  • Key Selling Points
    High-accuracy
  • Compressor Brand
    Copeland
  • Panel Thickness
    100mm, 150mm
  • Cooling Capacity
    50ton
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1 Year
  • Core Components
    Motor
  • Usage
    Cold Storage, Fruits,vegetables And Frozen Food Storage
  • Feature
    Automatic
  • Product Name
    Manual Sliding Door
  • Refrigerant
    R404A
  • Thickness Of Panel
    100mm,150mm
  • Thickness Of Color Steel
    0.426mm,0.5mm
  • Surface Material
    Color Steel , Stainless Steel
  • Application
    Hotel , Restaurant , Farms Etc
  • Insulation Material
    Pu Sandwich Panel
  • Connection Type
    Cam-lock
  • Door Type
    Sliding Door Hinged Door
  • Port
    Shanghai Port For Manual Sliding Door
  • Place of Origin
    Shandong, China
  • Brand Name
    Hugecool
  • Price
    $350.00/sets 1-9 sets
  • Packaging Details
    plywood package with pallet for Manual sliding door
  • Supply Ability
    500 Set/Sets per Month Manual sliding door

Manual Sliding Electric Door For Cold Storage Room

Manual Sliding Door And Electric Door For Cold Storage Room
Product Description

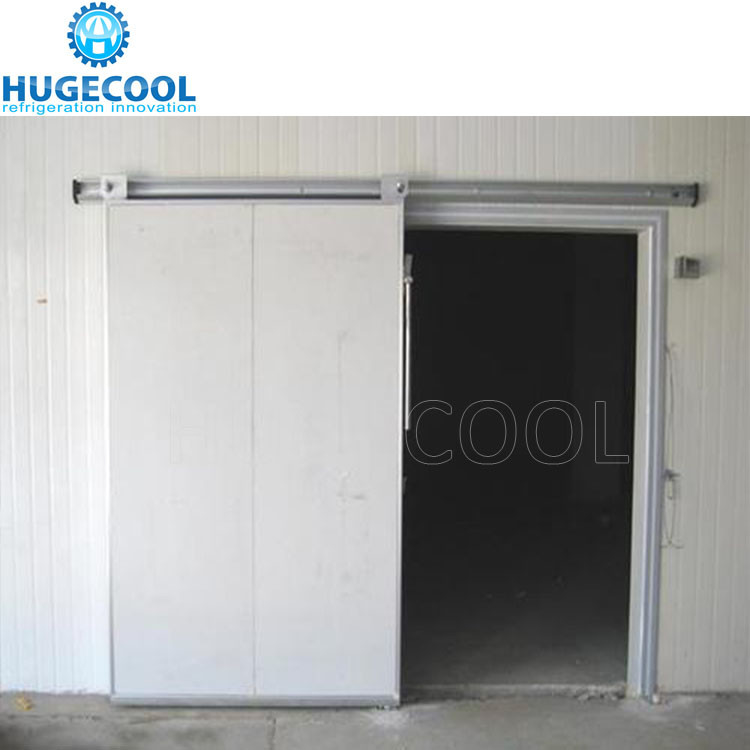

Manual Sliding Electric Door For Cold Storage Room 0

Feature

1.Cold Room Sliding Door Walk in Freezer Door
2.Good heat preservation performance
3.Thickness:100m//150mm/200mm
4.classification: manual door, swing door,sliding door,hinged door or other types according to your requirements.
5.Easy to install.
6.Sliding door is available in single and biparting doors for both cooler and freezer applications.
7. Heavy duty track system with anti-up thrust roller assembly and molded polymer casings.
8. Unlike traditional cold storage doors where the gasket is on the front face, the PerfectSeal gasket system utilizes a two-ply, fabric reinforced blade seal against the top and side edges of the door panel.
9. Sliding cold storage door systems can stand up to extreme conditions and heavy usage every day.
10.All doors are custom manufactured to your exact requirements
Specification
Name
Manual Sliding Door/ Cold Room Sliding Door/Cold Storage Automatic Door


Functions
For cold room using


Dimension
Customized Size


Weight
Depends


Warranty
One year


Panels
Cold room pu panels


Panel Thickness
Thickness can be 100mm,120mm,150mm,200mm, according to different working temperature and outside condition of ambient temperature.


Doors
Hinged door , swing door , sliding door


Installation catalog
Provided


Panels Cover
Painted steel sheet, stainless sheet , aluminum sheet


Technical support
Technicians can be sent to install

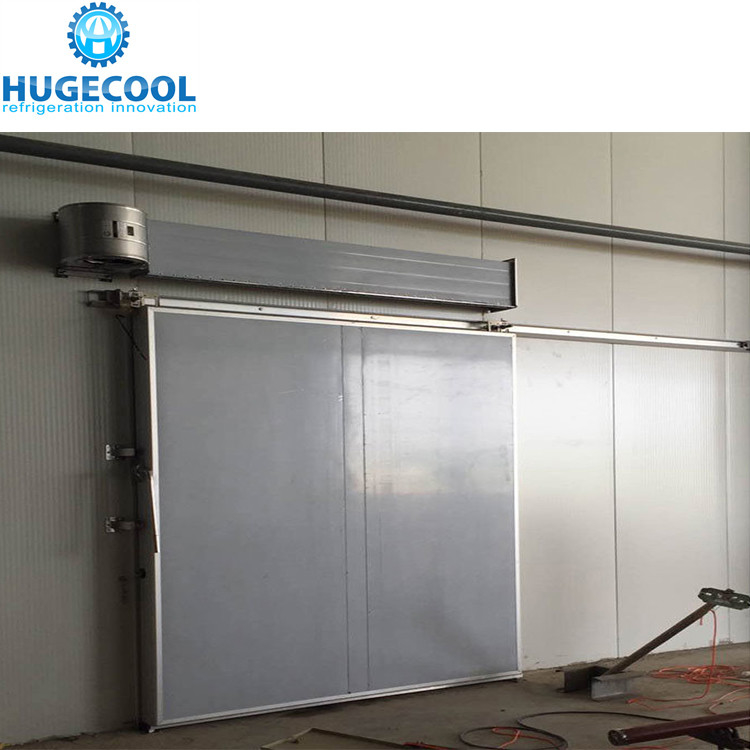

Manual Sliding Electric Door For Cold Storage Room 1

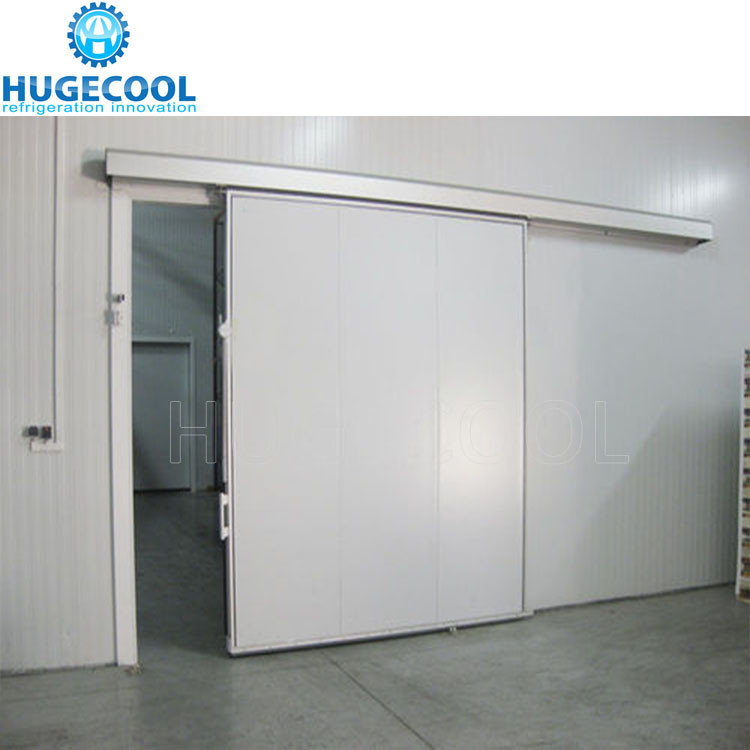

Manual Sliding Electric Door For Cold Storage Room 2
Manual Sliding Electric Door For Cold Storage Room 3

Door panel

Using polyurethane foam with panel overall, exterior level off, insulation performance is strong, plus box shell, the more enhance the overall effect.

Door Frame

The door made by direct foaming with plastic door frame and steel panel material , good sealed and heat insulation performance.And we can manufactured to different size according to different requirements .

Guide device

Guide rail’s material is Aluminum alloy, wheel is working on lining and inclined rail, when start the door,the wheel can separate door and doorframe.And when close the door , the wheel can press doorframe and terrace tightly.
Packing & Delivery

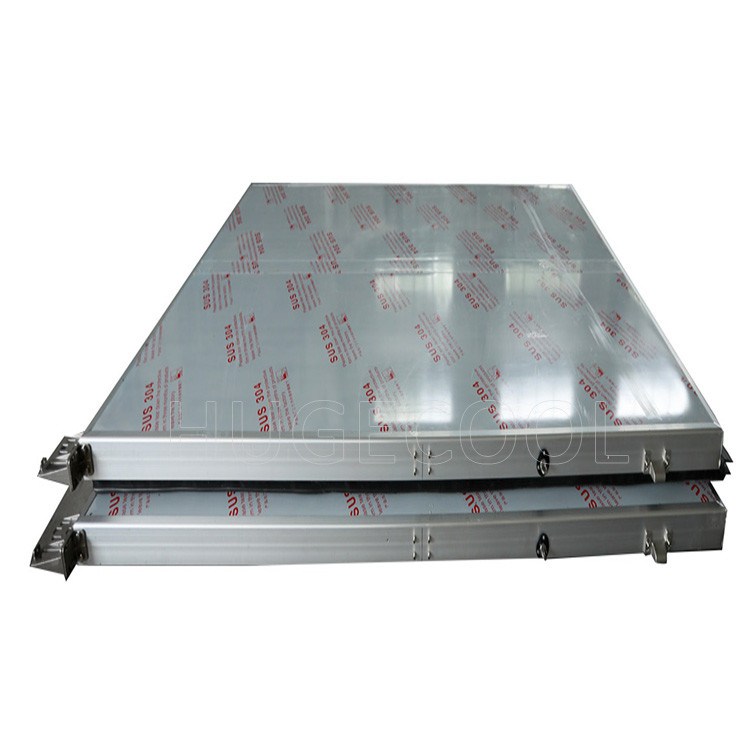

Manual Sliding Electric Door For Cold Storage Room 4

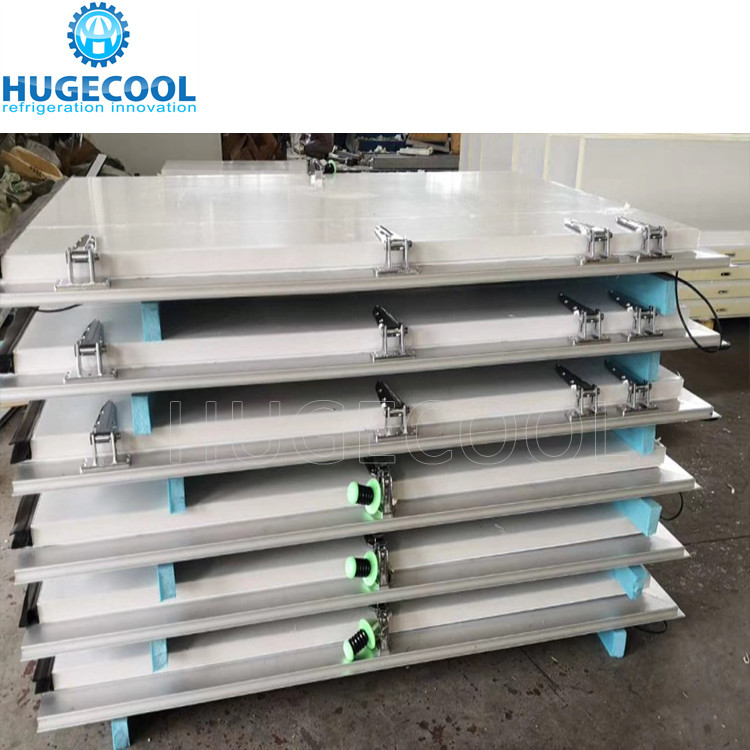

Manual Sliding Electric Door For Cold Storage Room 5
The protective packaging of the sliding door:

plywood box with pallet package

Company Profile

Qingdao Huicheng Mechanical & Electrical Equipment Co., Ltdis a group cooperation of manufacture and trading, specialized in refrigeration equipment and cold room line. Our products include supermarket display refrigerator, upright showcase, kitchen stainless steel refrigerator, kitchen refrigerated counter, cold room, refrigeration compressor unit, compressor racks, evaporator, and condenser etc. We have strong ability of experitse technic, scientific management, stable and reliable project quanlity and on-time after sevice. We observe the philosophy "Quality First, Reliance Prime". We have cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since the set up. We sincerely welcome you to visit our company or contact us for cooperation!
Manual Sliding Electric Door For Cold Storage Room 6
Manual Sliding Electric Door For Cold Storage Room 7
FAQ
1.Can you customize the cold room dimension?
Yes, we can customize the cold room dimension according to your requirements.
If you have no idea, please tell me the total weight of your goods, our engineer can design it for you.

2.Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.

3.What brand compressor can you offer?
Normally with original New Bitzer and Copeland compressor. Famous in the world.

4.How about the delivery time?
20 to 30 working days after down-payment confirmation.

5.How can you guarantee will ship for me in time? Do you know Alibaba Trade Assurance?
You could arrange payment to Alibaba account, Alibaba will protect your profit. If we do not ship in time for you, Alibaba will refund money to you.

6. What's your payment term?
L/C at sight or T/T(Down-payment 30%, balance arrange by T/T before shipment).
