Modular Panel Design Cold Room with Stable Temperature Control and Flexible Layout for Industrial Use
-
Temperature Range-18°C To -25°C
Modular Panel Design Cold Room with Stable Temperature Control and Flexible Layout for Industrial Use

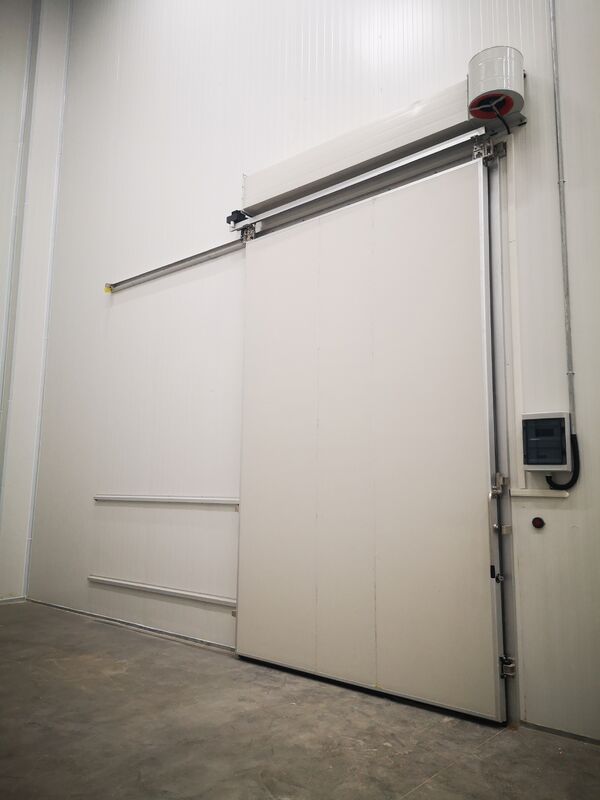

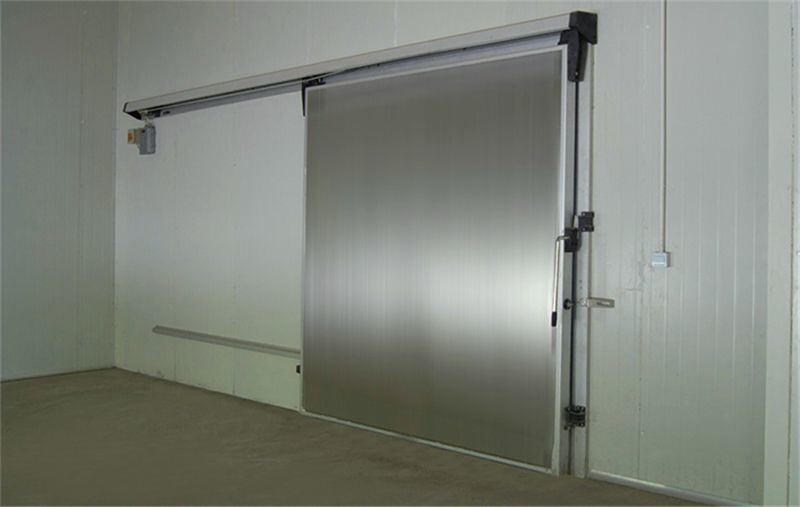

Stable Freezing Sliding Door Cold Room Modular Panels Flexible Layout Design
Features
- Modular panel design, easy installation
- Energy-saving refrigeration system
- Customizable size and temperature
- Suitable for fruits, vegetables, meat storage
Applications
- Storing fresh produce: fruits, vegetables, flowers
- Storing animal products: meat, seafood, poultry, eggs
- Storing processed food: dairy, frozen food, prepared meals
- Supporting meat processing & food manufacturing
- For cold chain logistics & warehouse distribution
- For supermarket & retail fresh food storage
- Preserving pharmaceuticals, vaccines and chemicals
Advantages
- Stable and accurate temperature control
- Fast cooling and high refrigeration efficiency
- Low energy consumption and energy-saving
- Good insulation and reliable sealing
- Long service life and durable structure
- Safe operation and easy maintenance
- Large storage capacity and flexible layout
- Environmentally friendly refrigeration system
Configuration
- Condensing unit: Brands include Bitzer, Copeland, etc.
- Evaporator: Equipped with Weiguang motor and hydrophilic aluminum fins
- Insulation panels: Customized dimensions, various thicknesses and surface materials available
- Cold storage door: Hinged door, sliding door, rolling door, auto-return door, etc.
- Electrical control system: PLC control system
- Refrigeration pipeline & fittings: Copper tubes, PVC curtain, air curtain, ramp, anti-slip plate, etc.
Specification
| Temperature Range | -18°C to -25°C |
| Panel Material | Color Steel / Stainless Steel |
| Insulation Material | Polyurethane (PU) |
| Panel Thickness | 75mm / 100mm / 120mm / 150mm / 200mm |
| Density of PU | 40–42 kg/m³ |
| Voltage | 220V / 380V / 415V |
| Frequency | 50Hz / 60Hz |
| Refrigerant | R404A / R448A |
| Cooling Type | Air-cooled / Water-cooled / Evaporative Cooled |
| Air Cooler Type | Ceiling-mounted Evaporator |
| Door Type | Hinged Door / Sliding Door |
| Door Material | Insulated Steel |
| Defrost Method | Electric / Hot Gas Defrost |
| Warranty | 12 Months |
Contact us for customized solution!
