Find us for Turn-Key cold storage project, design, manufacture, supply, installation, commissioning, training, service
Panel Dimension
Polyurethane sandwiched panels are of 100% Polyurethane insulation, which is constructed by being foamed in place with retarted polyurethane using high pressure. They have certain dimensions. Standard widths of panels are a multiple of 295.3mm. The maximum lengths of panels are 12M. Non-standard sizes are also available upon request with price varying.
Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
Tempreture:
| cold storage goods | tempreture range |
| processing room | 10C |
| fruit, vegetable, dry food | 0C~-5C |
| medicine, cake, pastry, chemical material | 0C~-5C |
| ice storage room | -5~-10C |
| fish, meat storage | -18~-25C |
| deep freezer | -25C~-60C |
Choice of the surface finished
A. Stucco Embossed Aluminium
B. Stainless Steel
C. Painted Galvanized Mild Steel
D. PVC Stell
E. Standard floor panels: 1.0mm galvanized mild steel
Panel thickness and Operating Temperature;
Cold storage temperature: -5C to +10C, panel thickness: 50mm, 75mm, 100mm;
Freezer storage temperature: -25 to +18C, panel thickness: 150mm, 180mm, 200mm;
Quick frozing temperature: -40C to +18C, panel thickness: 150mm, 180mm, 200mm.
Installation of panels:
Every panels consists of tongue and groove construction and can be tightened by a number of exocentric fasteners, which may be unscrewed easily with a hexagonal key.

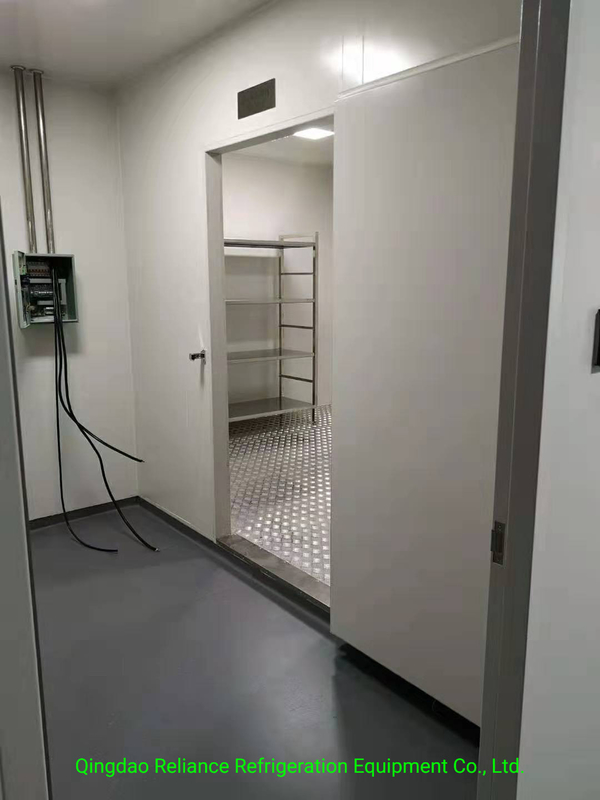

Cold Room in Building:
Our successful project
Our shipment
Our products are sold all over the world, you can rest assured.
