220V/380V Modular Cold Room With Precise Automatically Temperature Control

220V/380V Modular Cold Room With Precise Automatically Temperature Control

  • High Light

    walk in cold rooms

    ,

    modular freezer room

  • Voltage
    220V/380V
  • Surface Material
    Color Steel Or Stainless Steel Or Aluminum
  • Product Name
    Modular Cold Room
  • Warranty
    1 Year, 3 Years
  • Panel Thickness
    50mm 80mm 100mm 120mm 150mm 180mm 200mm
  • Functions
    Fresh-keep, Freezing, Quick-freezing, Fire-proof, Explosion-proof,
  • Size
    Customized
  • Usage
    Meat,Food,Fish,Fruit And Vegetable Keeping Fresh
  • Place of Origin
    Jiangsu, China (Mainland)
  • Brand Name
    HUGECOOL
  • Certification
    ISO
  • Model Number
    Cold Storage
  • Minimum Order Quantity
    1 Meter/Meters
  • Price
    $15.00 - $66.00 / Meters
  • Packaging Details
    Cold storage for sale in india Plastic packaged
  • Supply Ability
    300 Meter/Meters per Week cold storge online

220V/380V Modular Cold Room With Precise Automatically Temperature Control



Cold storage for sale in india
Description

Cold storage room is a construction need to maintain at required temperature, which used for goods storage, processing, by artificial refrigeration in a certain space. Polyurethane insulation panel is made by high-pressure foaming mold, the temperature can be adjusted between 5℃ to -25℃ or even lower.

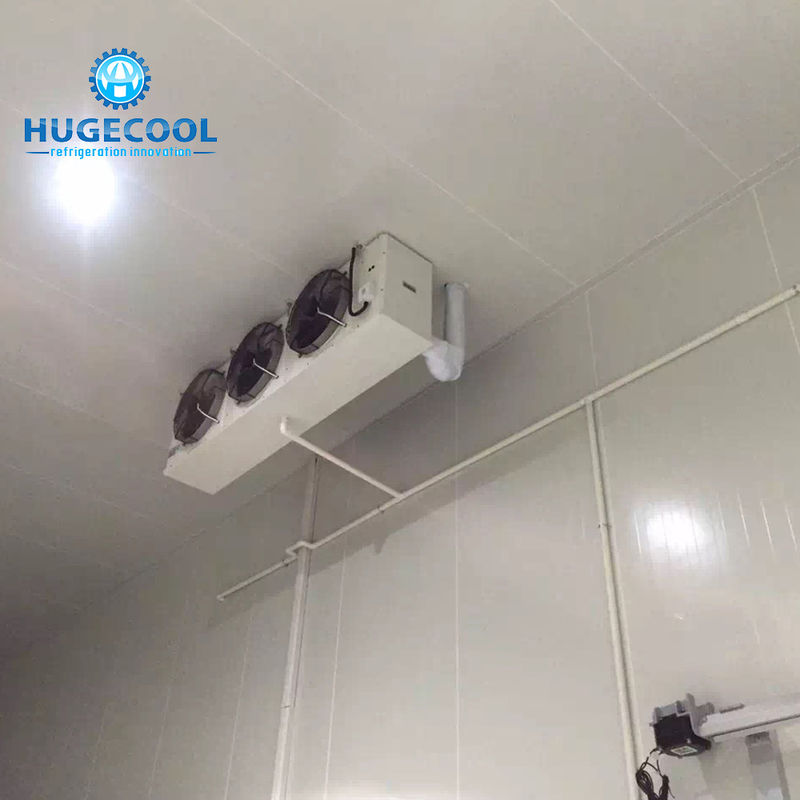

A complete set of cold room includes the Condensing unit (outside of the cold room) and Evaporator (Inside of the cold room), Computer controller and other spare parts.

220V/380V Modular Cold Room With Precise Automatically Temperature Control 0
  • Size: customized
  • Temperature: -45C to 20C
  • Refrigeration units: , Copeland, Tecumseh, Carrier compressor are all available
  • Door type:  hinged door, sliding door and return door are all available
  • Panel thickness: 50mm  100mm 150mm 180mm and 200mm are all available
  • Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.

               >>>>CONTACT US

220V/380V Modular Cold Room With Precise Automatically Temperature Control 1
Specification

Sizes of Panel

Length(m)

less than 30m

Width(mm)

960mm

Thickness(mm)

50, 75 ,100 ,120 ,150 ,200mm

 Heat Conductivity(W/mk)

0.022

 Compressive Strength(N/cm2)

more than 196

 Tensile Strength (N/cm2)

more than 24.5

 Bending Strength (N/cm2)

more than 24.5

 Water Absorption(g/100cm2)

 3

 Flame Resistance
(only for panels added flame retardant agent)

Self-extinguishing within 3 seconds after taking away flame

Material of covering steel

Color painted steel
Stainless steel
Galvanized steel

220V/380V Modular Cold Room With Precise Automatically Temperature Control 2
Product show
220V/380V Modular Cold Room With Precise Automatically Temperature Control 3
220V/380V Modular Cold Room With Precise Automatically Temperature Control 4
220V/380V Modular Cold Room With Precise Automatically Temperature Control 5
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
Successful cases
220V/380V Modular Cold Room With Precise Automatically Temperature Control 6

220V/380V Modular Cold Room With Precise Automatically Temperature Control 7

220V/380V Modular Cold Room With Precise Automatically Temperature Control 8
220V/380V Modular Cold Room With Precise Automatically Temperature Control 9
220V/380V Modular Cold Room With Precise Automatically Temperature Control 10
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%,balance against copy of BOL).
